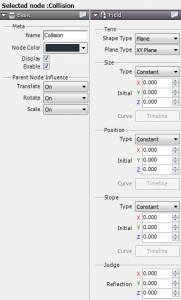

Collision

Detect collisions for generated particles.





Period



Specify shape for collision detection.
Shape Type

Flat Conduct collision detection with respect to a flat surface
Sphere Conduct collision detection with respect to a sphere
Cube Conduct collision detection with respect to a cube



Select Flat as the shape and specify the applicable axis for the flat surface.
Flat Surface Type

XY Flat Conduct collision detection with respect to a flat surface in the X & Y planes
YZ Flat Conduct collision detection with respect to a flat surface in the Y & Z planes
ZX Flat Conduct collision detection with respect to a flat surface in the Z & x planes





Size



Specify the size of the detection shape.

Constant Set fixed direction.
Curve Set a variable direction for keyframes in Timeline.





Location



Set detection location.

Constant Set fixed direction.
Curve Set a variable direction for keyframes in Timeline.





Slope



Specify the slope value in degrees for the collision detection.

Constant Set fixed direction.
Curve Set variable direction for keyframes in Timeline.





Post-detection Processing



Set the reflection rate when collisions occur.
