Schematic

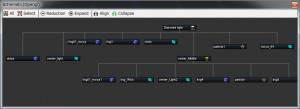

View for Editing Structural Elements of Effects
| All | display whole tree |
| Select | display selected nodes |
| Reduce/Expand | reduce and expand |
| Align | align selected nodes |
| Collapse | collapse vertical nodes (double-clicking also works) |
| Display | go between displaying and not displaying nodes (“ｖ” indicates a displayed node) |
Operation
| Left-click | select node |
| [SHIFT]+left button drag | connect/disconnect nodes |
| Middle wheel drag | scroll |
| Middle wheel rotate [ALT] + middle wheel drag S + middle wheel drag |
expand and reduce |
 |
 |
 |

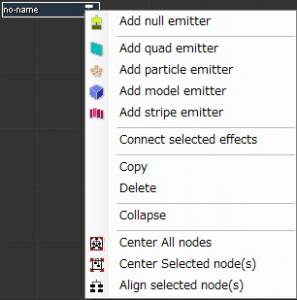

From Schematic, right-click to add an Effect Root.
From node, right-click to add each kind of emitter.
Refer to the Node summary.

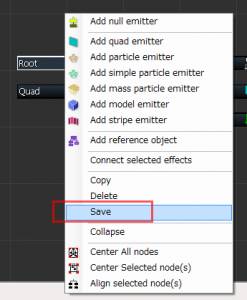

Added bmsln export for Effect Root(from Version 1.8)
Export and save an effect root
from Schematic.
When creating a new effect,
read in multiple effect files (bmsln)
and copy nodes.
